Specifications
Place of Origin:
Made in China
Brand:
TPS
Scene:
Wheelchair, Scooter, Cars, Trucks, Trailers, Forklift, Lead Acid Battery, AGM And Gel Battery
Mounting:
Desktop
Charger for Lead-Acid Battery
● Prevent Lead Sulfate Crystals on
Electrode Surface
● Check Battery Voltage automatically for
Charging Start
● Reverse Polarity Protection
● Short Circuit Protection
● LEDs indicate Charging Status
● 5 Year Warranty
main applications
● Wheelchairs, Scooter
● Cars, Trucks, Caravan
| Article No. | Article Name | Rated battery voltage (V) | Charging voltage (V) | Current (A) | Power (W) | Battery Type |
| 901002904 | TPS030-CH12-2.5 | 12 | 14.4 | 2.5 | 30 | AGM,GEL |
| 901002905 | TPS030-CH24-1.25 | 24 | 28.8 | 1.25 | 30 | AGM,GEL |
| 901002907 | TPS030-CH16.4-2 | 16.4 | 28.8 | 2 | 30 | AGM,GEL |
| 901000405 | TPS060-CH12-5 | 12 | 14.4 | 5 | 60 | Wet,AGM,GEL |
| 901000406 | TPS060-CH24-2.5 | 24 | 28.8 | 2.5 | 60 | Wet,AGM,GEL |
| 901000509 | TPS150-CH12-12 | 12 | 14.4 | 10 | 150 | Wet,AGM,GEL |
| 901000510 | TPS150-CH24-6 | 24 | 28.8 | 5 | 150 | Wet,AGM,GEL |
| 901000604 | TPS200-CH24-8 | 24 | 28.8 | 8 | 200 | Wet,AGM,GEL |
| 901000605 | TPS200-CH12-16 | 12 | 14.4 | 16 | 200 | Wet,AGM,GEL |
| 901000606 | TPS300-CH24-12 | 24 | 28.8 | 12 | 300 | Wet,AGM,GEL |
| 901000614 | TPS300-CH12-16 | 12 | 14.4 | 16 | 300 | Wet,AGM,GEL |
| 901000613 | TPS300-CH36-8 | 36 | 43.2 | 8 | 300 | Wet,AGM,GEL |
| 901000607 | TPS300-CH48-6 | 48 | 57.6 | 6 | 300 | Wet,AGM,GEL |
| 901000615 | TPS400-CH48-7 | 48 | 57.6 | 7 | 400 | Wet,AGM,GEL |

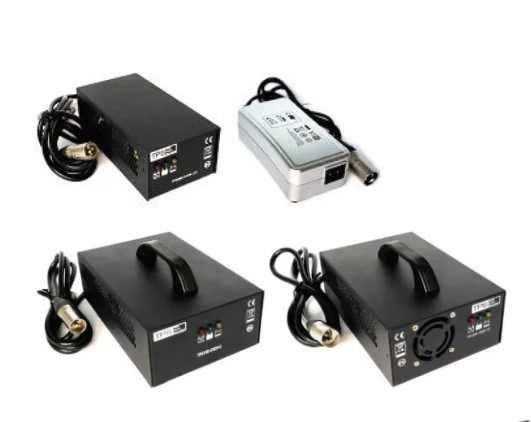

Product Display
| Product Name | Charger for Lead-Acid Battery |
| Accessories | ● Charger ● Manuel ● XLR-Output Connector (Optional) |
| Charger for 12 V - 48 V Wet Cell and VRLA Battery | TPS-TBI Series applicate IUoU 2 and 3-Steps Charging Curve Maintenance-Free VRLA Batteries (AGM, GEL). Ensure that there is sufficient Air Circulation and a dry Environment when Charging a Battery. The Charging Voltage is set up under 25°C Ambient Temperature by TPS. Ambient Temperature for Charging should be between 10°C - 30°C. On special request this Charger Series is available with a Battery Refresher assembling included. (36 Volt Battery is excluded) The Battery Refresher (Page 31) avoids Sulfation of Recharchable Lead Batteries (Lead-Acid, AGM, Gel with Capacity to 300 Ah) and works with Puls to Preventing Crystallization. The Battery Life will extend up to three Times longer than usual. |

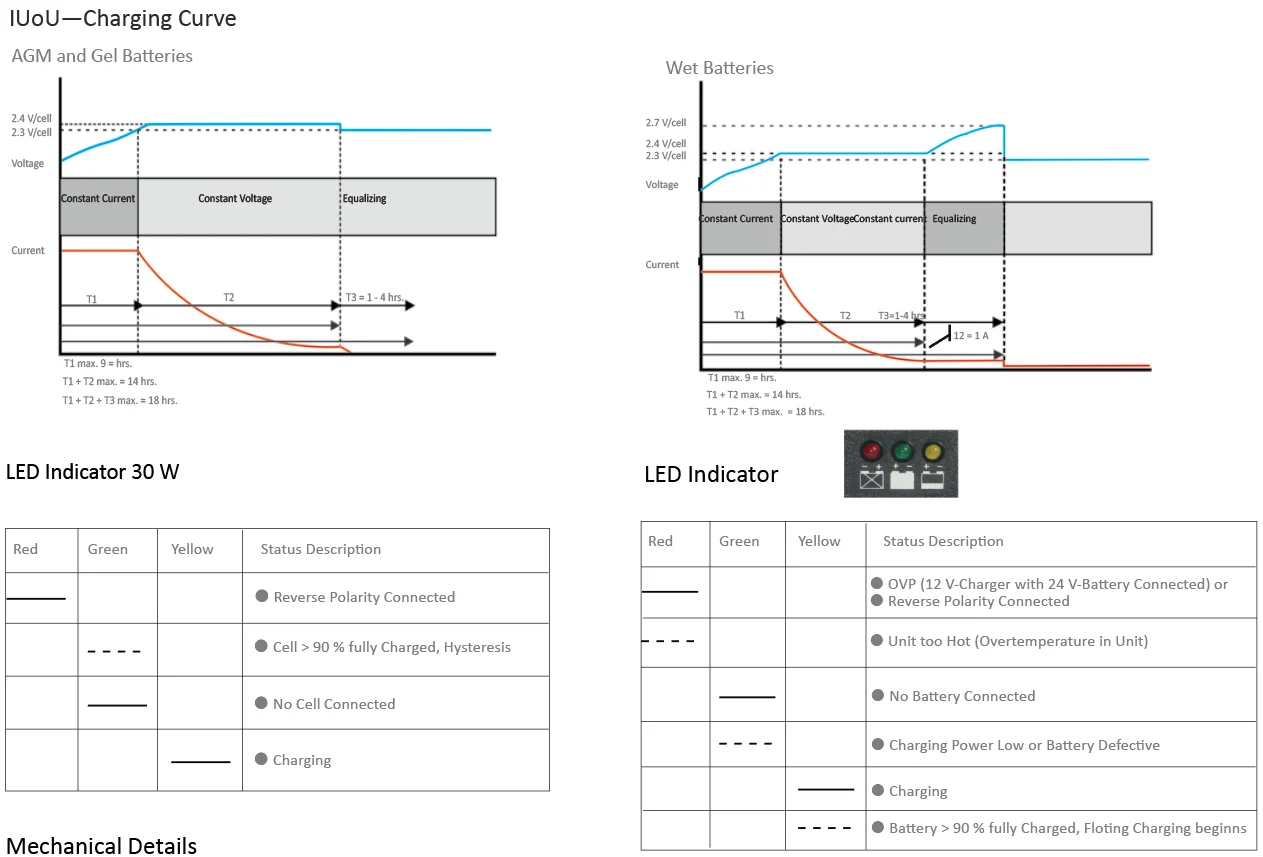

| Electrical Specifications | Characteristic: IUoU (after 12/h Switching to Floating Charging） EMC: EN 55014, EN 55022, EN 61000 Class of Protection: I for TBI ≤ 40 W - 350 W II for TBI 30 W Main Voltage: 100 – 240 VAC, 50/60 Hz Nominal Voltage: 12 V - 48 V Refresher Impuls: 8.3 KHz Operating Temperature: 10°C - 30°C Storage Temperature: -10°C - 70°C |
| Safety, EMC | CE compliance with Low-Voltage Directive 2014/35/EU EMC Directive compliance with 2014/30/EU Safety compliance with UL508, UL60950-1, EN60950-1 |
| NOTE: | 1. If Battery is not fully charged after 14/h, Reason could be Charger too weak or Battery Defective 2. Rule of Thumb: Charging Current = Battery Capacity 8 - 10. For Example 10 - 12 A Charger is suitable for 60 Ah Battery |

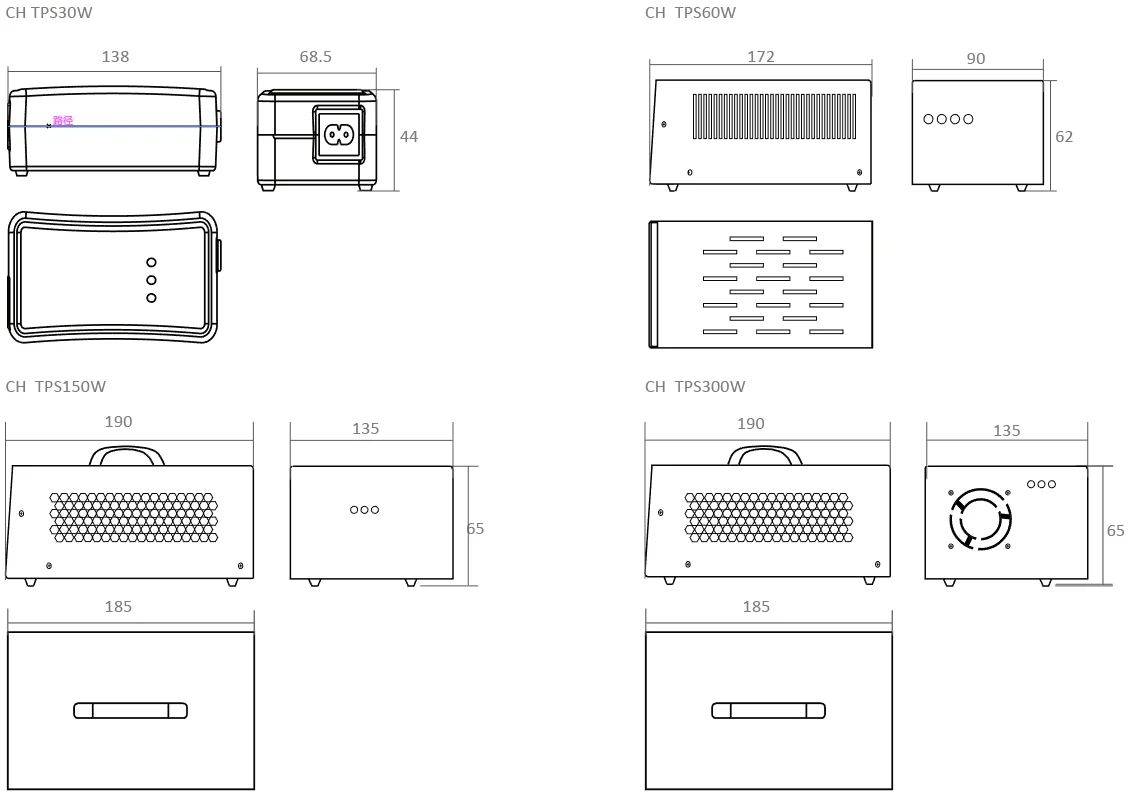

Product Details

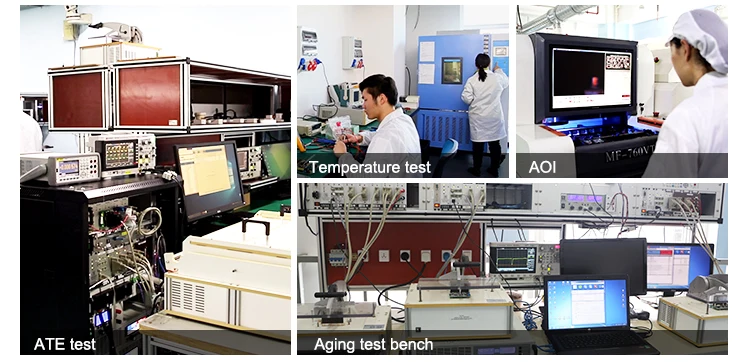

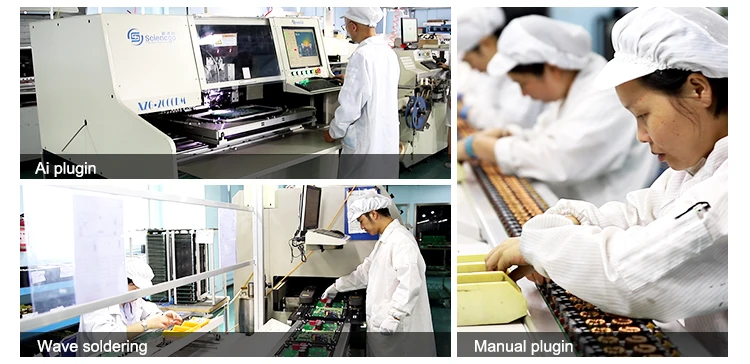

our workshop

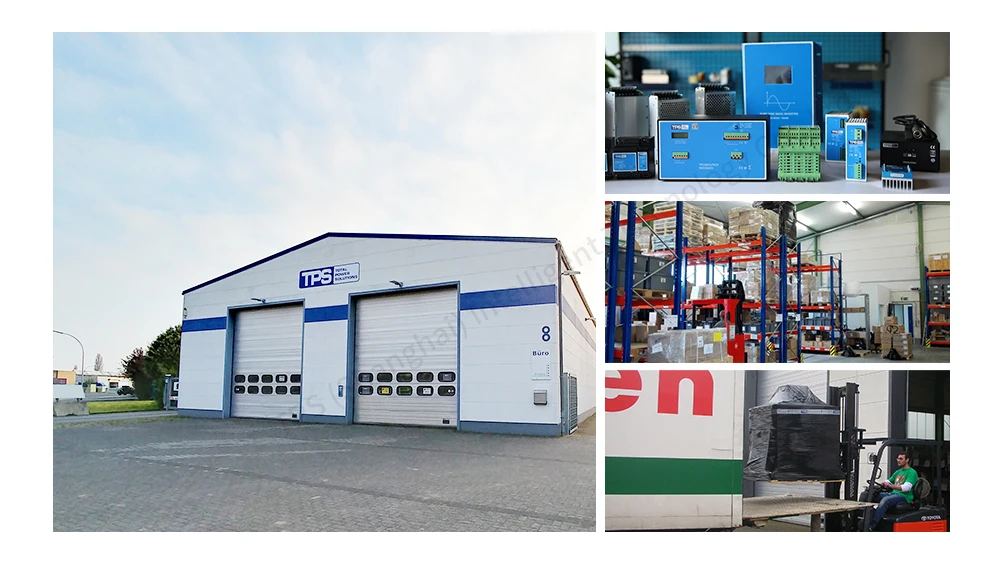

warehouses and exhibitions
